Products

Emission Monitoring System Components

Verification Set

Overall system verification
system to perform overall verification of the system. System can be controlled for the parameter verification and measuremment
Sensor Verification
Sensor verification performs control for the sensor itself.

Manifold Sets

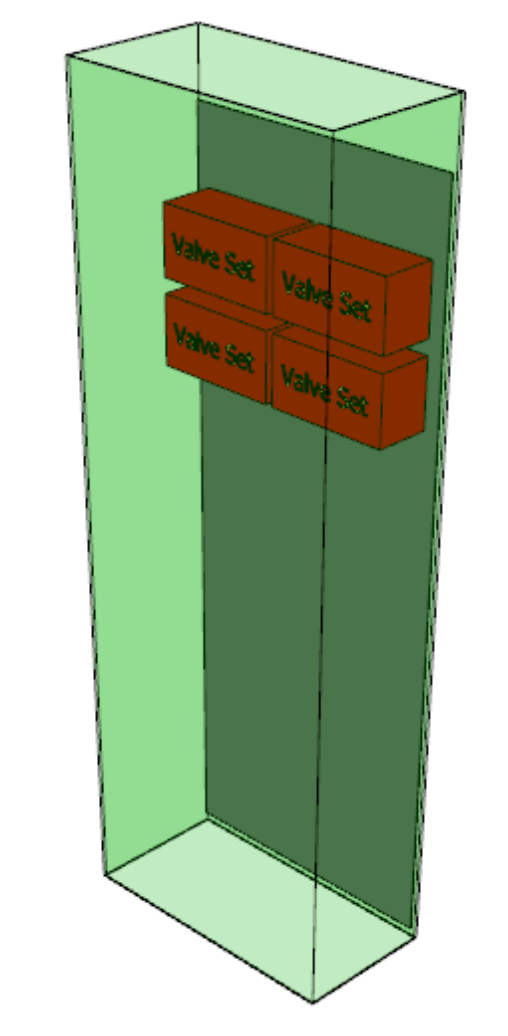

Unique set
Valve sets are placed inside cabinet. Each set has 10 valves, Pneumatic and electrical connections.
Stand alone Set
Valve sets can be placed outside of the cabinet. These cabinets can be placed outside the cabinet alone depending on the layout of the factory.

Control Volume box

Sizes (1-20 Lt)
A and B dimensions for each surfaces X, Y, Z (+/-). If no exit place A and B as zero
Sizes (20-1000 Lt)
Provide Picture and overall dimension
Drum Unit Shapes
Brand and Type of the Drum and Bottle

Compressor

Emission Monitoring System Components

Gas used can be dangerous due to explosive characteristics. Hydrogen and Arced Sf6 can be taken as example. For this type of applications, the critical points are as below

  • Gas leak cannot be acceptable. Our compressor has components that will alarm automatically.
  • The gasket and other components must be selected based on the compatibility of the material and gas. In our design gasket and materials in use are changed based on material.
  • The leak amount should trigger the duration to replace the gasket and other components. Our system provides this information.

Gas used can be dangerous due to explosive characteristics. Hydrogen and Arced Sf6 can be taken as example. For this type of applications, the critical points are as below

Based On Process Properties
The compression of the gas is a critical process. First point to control should be the thermodynamic properties of the gas.
  • Gas temperature will increase during compression. Gaskets and materials are selected based on this condition. Our compressor has water cooling feature to compensate this point.
  • Gas may liquify during operation and over compression on liquid phase may damage compressor. So working limits are selected based on this condition
Depending on the process, the compressor will be kept as stop and operate so frequently. This will increase the usage of the energy, increase the wear on components. For that reason, our compressors can work with 2 energy source. Compressed air and Hydraulic. Depending on the application customer can select any configuration.
Requirement

Due to critical points mentioned above, we kindly request to have the information on

  • The gas to be used
  • The process parameters of the operation
  • Overall operation of the system where the compressor will be in operation.
  • The means of the energy source

the specification based on the compression rate, low speed and sizes are not defined. With the parameters provided by the customer we define the compressor for the customer.

Compressors Are In Operation
In Turkey And China At Reuse Facilities
Schneider And Its Supplier

Recovery

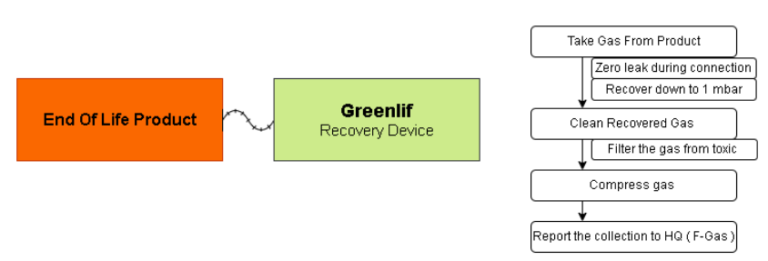

End Of Life Gas Recovery Kit

The gasses related to F-Gas regulation must be collected at the end of life status. For that reason, the gas must be collected completely.

During the process the parameters are critical to control.

  • While collecting the gas from the product, the connections must be used or a hos should be made on the surface. During this operation our system releases the risk of pollution the atmosphere and secures the operator also.
  • The gas is recovered down to 1 mbar not to let any gas remained inside the product.
  • After the gas is collected the gas is fed through several filters to get rid of pollution accumulated inside.
  • Then the gas is compressed up to liquification. This will enable the process to be handled in limited spaces.
  • Then the report can be sent to management center to report in accordance with F-Gas reporting.
  • During the process our system controls the device and checks whether if there is any leak to atmosphere.

General Properties Of The Devices

The leak to environment is below 1E-5 mbarl/s
The gas recovered can be measured.
The gas is totally recovered down to 1 mbar level

Our Added Velue To Process

we have modular structure to group required parts
Depending on requirement any grouping is possible
The compression is done up to liquification state.
Can be operated without electricity

Inside The Brick Formation We Have The Components Below

Vacuum pump

Scroll Type with different sizes to be connected to storage facility

Filter Sets

Get rid of by products, toxic material. secures the system

Compressor

As explained above differentiates with model and type

Sensing kits

Kits to detect leak and the property of the gas recovered and by products

Gas Storage

differentiates depending on need and availability of space

Gas Weighting

used to quantify the recovered gas amount

Automation Kit

A seperate box containing all plc, pc and other management components

VI Incubation Chambers and Vacuum Chambers

Please return with the process parameters and the sizes. the chambers can be produced with required properties. In addition to mechanical manufacturing automation can be added to process

Calibrated Leaks

Please return with the process parameters and the sizes. the chambers can be produced with required properties. In addition to mechanical manufacturing automation can be added to process

Weight

Please return with the process parameters and the sizes. the chambers can be produced with required properties. In addition to mechanical manufacturing automation can be added to process
